Arch111
Assignment 3
An abstraction drawing of the Barbican Estate by JoasSouza, depicting light, texture and depth using only parallel lines
​Assignment 7
An orthographic set composed of two views and a section of a given object. We were to pay attention to the line quality, line weight and accuracy t​Assignment 7 : An orthographic set composed of two views and a section of a given object. We were to pay attention to the line quality, line weight and accuracy to the dimensions
Assignment 10

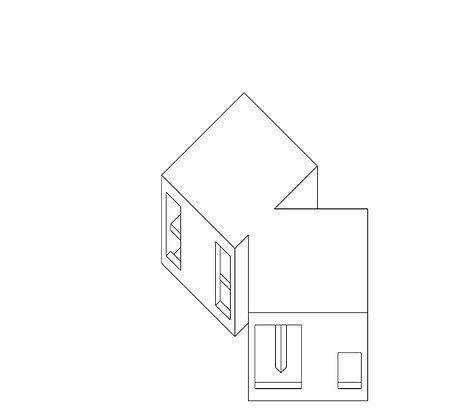

To draw a exploded section axonometric drawing through an indicated section line of a given geometry.
Assignment 11
​To make an exploded section axonometric animation of a given geometry.
Midterm 1
Midterm 1 : To make an othographic set of 3 views of a given geometry - The front view, side view and the indicated section and paying attention to the line quality and line weight.
Midterm 2

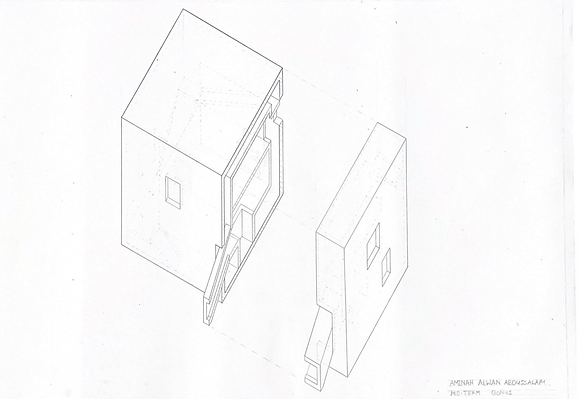

To produce an exploded section axonometric through an indicated section line of a given geometry
